Model：*6200NR
Old Model：
Type：Deep Groove Ball Bearing
d：?10
D：30
B：9
| Dimansion mm | |
| d | 10 |
| d1 ～ | 17 |
| D1 ～ | 23.2 |
| D3 | 28.17 |
| D4 | 34.7 |
| b | 1.35 |
| f | 1.12 |
| C | 2.06 |
| r 1,2 Min | 0.6 |
| r 0 Max | 0.4 |
| Basic load ratings KN | |
| dyc Cr | 5.4 |
| stc Cor | 2.36 |
| Designation | |
| Bearing with snap groove | *6200N |
| snap groove and snap ring | *6200NR |
| snap ring | SP30 |
| Pu | |
| Pu | 0.1 |
| Principal dimensions mm | |
| d | ?10 |
| D | 30 |
| B | 9 |
| Speed ratings rpm | |
| Speed Ratings | 56000 |
| Limiting Speed 1) | 34000 |

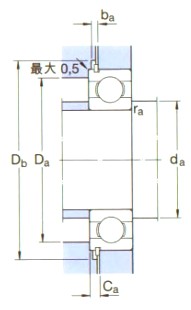

| Abutment and fillet dimensions mm | |
| d a Min | 14.2 |
| Da Max | 25.8 |
| D b Min | 36 |
| b a Min | 1.5 |
| Ca Max | 3.18 |
| r a Max | 0.6 |
| Calculation coefficient | |
| k r | 0.025 |
| fo | 13 |
| Mass kg | |
| Weight kg | 0.032 |
Wafangdian Dajiang Bearing Manufacturing Co., Ltdspecializes in selling *6200NR-Deep Groove Ball Bearing，Relevant information of *6200NR-Deep Groove Ball Bearing includes： Designation: *6200NR d:?10 D:30 B:9 Brand: Type:Deep Groove Ball Bearing ，Want to know more about *6200NR-Deep Groove Ball Bearing You can consult online or call the hotline, we will provide you with detailed service.
*6200NR-Deep Groove Ball Bearing is widely used.*6200NR-Deep Groove Ball Bearing is mainly used in construction machinery, machine tools, automobiles, metallurgy, mines, petroleum, machinery, electric power, railways and other industries. The price of *6200NR-Deep Groove Ball Bearing sold by the company is reasonable, the quality is guaranteed, the service in all aspects is provided, and the customer's demand is satisfied.
